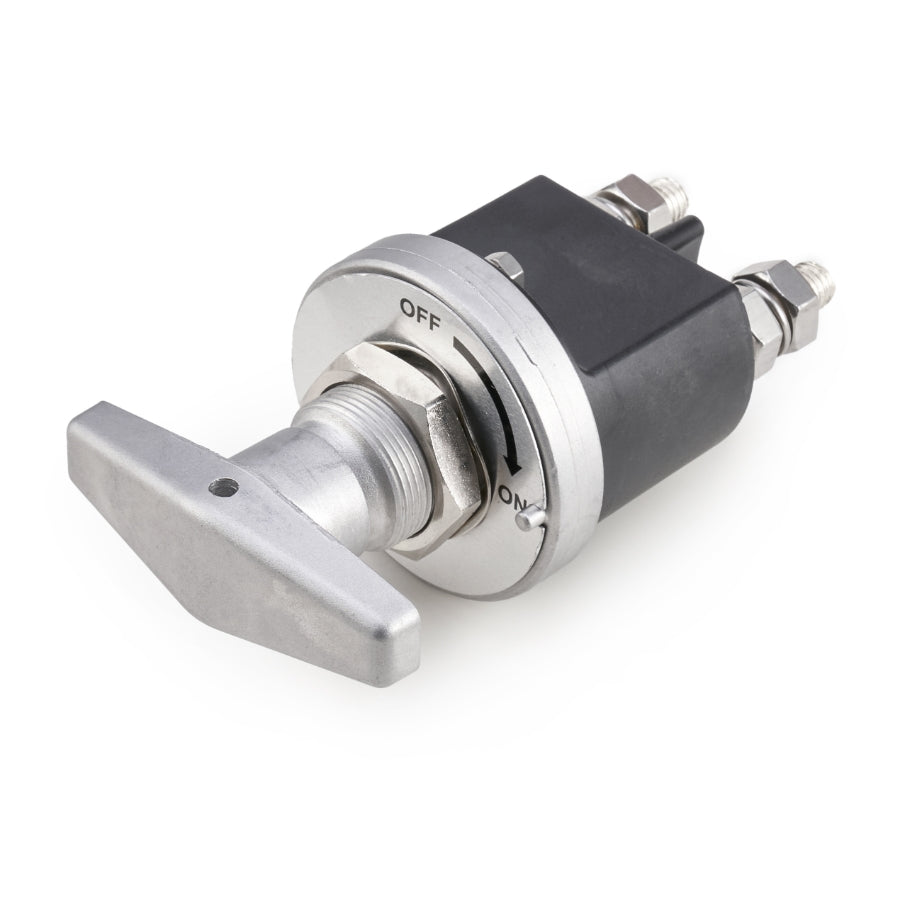

Battery Disconnect Switch, 500A, 12VDC

Robust high-amp battery disconnect switch durably designed to withstand harsh environments and adverse conditions; metal body construction with environment protection ranging from splash proof sealing to IP66, with easy-grip T-handle.

• OptiFuse HDB6-1A-3-T Battery Disconnect Switch
• Category: Battery Disconnects
• Manufacturer: OptiFuse
• Switch Type: Mechanical
• Circuitry: SPST
• Continuous Rating: 500A 12VDC, 300A 24VDC
• Intermittent Rating: 2000A for 5 seconds
• Switch Function: Off-On
• Water-resistant design, sealed with gasket and O-Rings
• Completed Sealed to: IP66
• Contact Type: (2) M20 studs
• Operating Temperature: -40°F (-40°C) to 185°F (85°C)
• Silver-plated copper contacts
• Lock-out handle and bracket allows the switch to be locked in the off position to comply with OSHA lock-out/tag-out regulation
• Fixed spring-loaded T-handle
• Replacement to existing competitive disconnect switches
