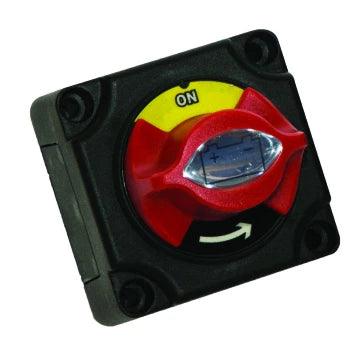

Battery Disconnect Switch On/Off 20387

2-Position Mini Master Single Battery Disconnect Switch for use on a single 12 Volt Battery - negative cable application.

• For Application Up to 48 Volts
• ISO 8846 Approved
• Continuous Rating: 300 Amps
• Intermittent Rating: 1000 Amps / 5 Seconds
• Crank Rating: 700 Amps / 10 Seconds
• Dimensions: 2-3/4" L x 2-3/4" W x 3" H
• Recess, Flush Top Mount - 4 Screw Holes
• Removable Back Plate & 4 Side Knock out Plates for Battery Cables
• 10mm Threaded Studs with Nuts
